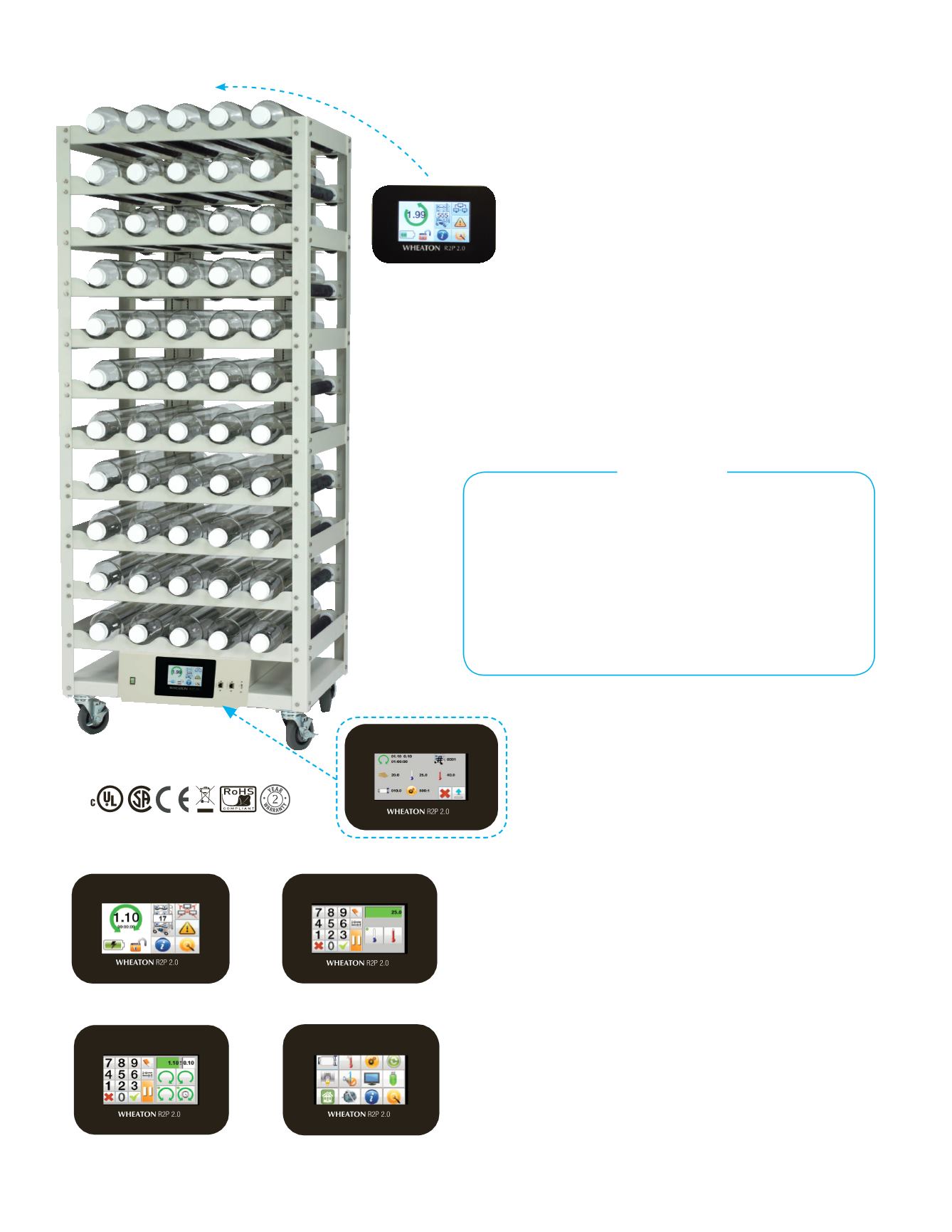

The R2P 2.0 touch screen was designed for use directly
out of the box. There are four types of screens for system
navigation. The
Main Screen
displays all of the most
important process conditions including bottle speed, bottle
direction, alarms, unit identification number, power status,
and the network status. From the main screen the user can
access the general
Setup Screen
.
The user can configure system parameters that are
frequently accessed from the Setup Screen including speed
ramp time and the event log. All parameters are changed in
Configuration Screens
that feature large numeric keypads
and intuitive operation. The Setup Screen also allows access
to the
Factory Screen
for system parameters that are
established during factory assembly and testing. All screens
can access an onboard user guide that details the function of
each icon. Don’t worry we will still include the user manual;
you just may never need it.
■
Robust
touch screen interface
that is easy to view from a distance
■
Readily recognized
icons for intuitive navigation
■
Digitally controlled
maintenance free motor accurate
to 0.01 RPM
■
Capable of
remote control and monitoring
through SCADA systems
■
Multiple decking and capacity configurations
available for process
flexibility
■
USB Downloadable
System Event Log
Available in Top or
Bottom Mounted
Control
Profile
Capacity:.........................................................................................................5-88 Positions
Bottle Speed (110mm Diameter Bottle, other speeds available):....0.25-8.1 RPM
Accuracy:................................................................................................................ 0.01 RPM
Drive:..................................................................................................................... Belt Driven
Motor Type:......................................................................................................Brushless DC
Rotation Direction:.................................Clockwise, Counter-Clockwise and Rocking
Belt Break Alarm:...................................................................................................Included
Options:.................................................Temperature Monitoring and Battery Backup
Remote Communication:...............................................................................................Yes,
Modbus
®
Protocol and WHEATON Protocol via Ethernet TCP/IP and RS422/485
Humidity:......................................................................................................80% up to 31°C
Operating Temperature:.................................................................................... 10 to 40°C
Electrical:............................................................................100-240 VAC, 50/60 Hz, 35W
